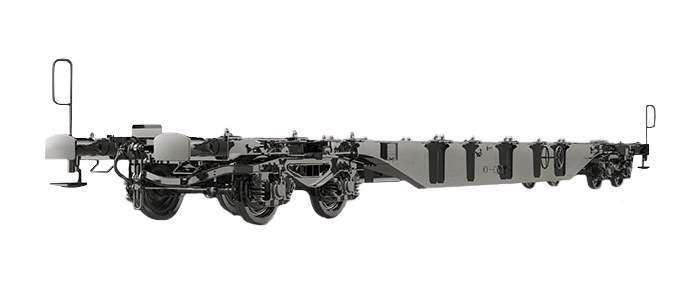

Sgns(s) 60‘

The wagon of Sgns(s) 60 ́ series according to the type drawing No. N-245-00-00-00-0 is a 4-axle wagon designed for transportation of containers and swap bodies. The wagon is suitable for transportation of: ISO containers with length of 20 ́, 30 ́, 40 ́ and 45 ́ classified in UIC 592-2, Class 1; swap bodies of group 1, 2, 3, 3a and 4 according to UIC 592-4. The wagon is designed for operation in the S and SS mode. The wagon is designed for transportation without any limitations on all European tracks with normal track gauge and for Spanish tracks with wide 1,668mm track gauge. The wagon is designed for climatic conditions with temperatures T3 ( -25 °C to +45 °C) according to TSI-WAG. The wagon complies with conditions for GE marking according to TSI-WAG.

I want to know more
;

Technical specification

Wagon length over buffers 19 740 mm
Distance between bogie pivots 14 200 mm
Loading length 18 500 mm
Container loading plane height above top of rail. 1 155 mm
Track gauge 1 435/1668 mm
bogie wheel base 1 800 mm
The wagon complies with the kinematic gauge G1/Gl1 according to TSI-WAG and EN 15273-2
Wagon tare 19,7 t
Max. loading weight 70,3 t
Max. axle load 22,5 t
Max. weight of loaded wagon 90,0 t
weight of loaded wagon per length unit 4,56 t/m
