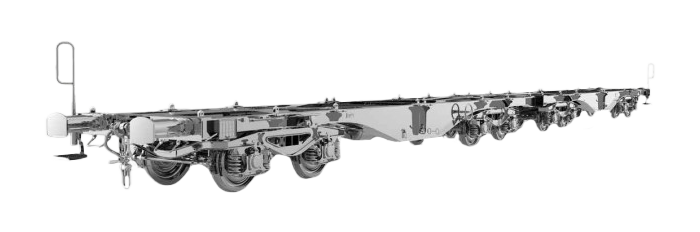

Sggrrss 80 ́
8-axle wagon for transportation of containers of Sggrrss 80 ́ series complies with TSI WAG, regulations, applicable UIC Leaflets, ERRI recommendations, agreement on mutual application of freight wagons in the international transport AVV and EN standards. The wagon is designed for climatic conditions with T1 temperatures (from -25 oC to +40 oC) according to TSI-WAG. The wagon can create integral train sets, or it can be arranged to any train set. The wagon is suitable for transportation of ISO containers of 20‘, 30 ́ and 40‘ length classified in IRS 50592. The wagon is classified in the FII category according to EN 12663-2.
I want to know more
| Wagon length over buffers | 26 480 mm |
|---|---|
| Loading length | 2 x 12 300 mm |
| Distance between bogie pivots | 2 x 8 000 mm |
| Track gauge | 1 435 mm |
| buffer height above top of rail | 1025 mm |
| automatic coupling axis height above top of rail | 1005 mm |
| bogie | Y25 Ls1-K |
| bogie wheel base | 1 800 mm |
| Wheel diameter | 920 mm |
| container loading plane height above top of rail | 1 155 mm |
| Wagon tare | 32,2 t |
|---|---|
| max. weight of cargo | 147,8 t |
| Max. weight of loaded wagon | 2x90 t |
| Max. axle load | 22,5 t |
| wagon prepared for installation of the automatic coupling | . |
| max. speed – empty wagon | 120km/hod. |
| max. speed – loaded wagon at 20 t axle load | 120km/hod. |
| max. speed – loaded wagon at 22,5 t axle load | 100km/hod. |
| Optimised wagon length, shortened by 600 mm | . |
