Zans 98 m³

Play zans 98

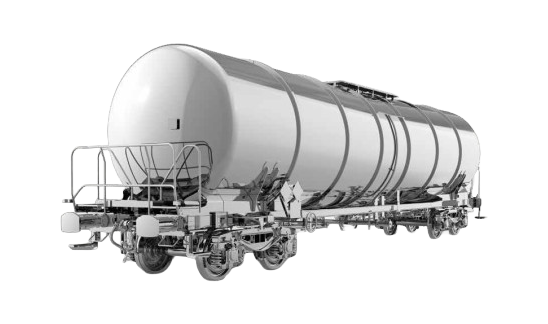

The wagon of Zans series is a 4-axle tank wagon of 98 m³ volume; it complies with TSI WAG, regulations, applicable UIC Leaflets, ERRI recommendations, agreement on mutual application of freight wagons in the international transport AVV, regulations for the international transport of dangerous goods RID, EN standards. The wagon is designed for operation without limitations on all European railway tracks with normal track gauge and for climatic conditions with T1 temperatures (from -25 °C to +40 °C) according to TSI-WAG. The wagon meets the conditions for GE marking according to TSI-WAG.

Technical specification

Track gauge 1 435 mm
Tare 22,6 t
Weight of loaded wagon 90,0 t
Max. axle weight 22,5 t
Loading weight 67,4 t
Max. speed of empty/loaded wagon 120 km/h / 100 km/h
Loading volume 98 m3
Type of bogie Y25 Ls-K
Wagon prepared for installation of the automatic coupling .
Maximal volume at low wagon weight in the frame version. Increase of transportation capacity .

Product variants (1)

Title Length over buffers mm Volume Weight t DAC ready
N-320-00 Za(c)ns 98m³ 16 400 98 21,8 Yes Download product datasheet

Interested in this product?

Please contact us to +421 52 711 2123 or sales@tatravagonka.sk
