Tadns 83m 3

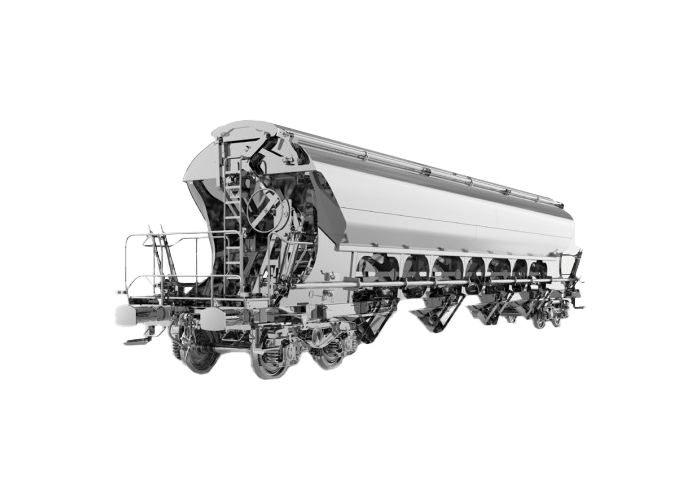

The wagon of Tadns series is a 4-axle covered discharging wagon. It is equipped with an opening roof and a body with 4 discharging hoppers and with 8 discharging openings with discharging by means of vaulted segmented plates next to the rails. Cargo can be discharged either to one side or to the other side or to the both sides simultaneously by means of fixed chutes. The wagon is designed for operation in S mode. The wagon is designed for operation without limitations on all European railway tracks with normal track gauge and for climatic conditions with T1 temperatures (from -25 oC to +40 oC) according to TSI-WAG. The wagon meets the conditions for GE marking according to TSI-WAG
I want to know more
| Track Gauge | 1 435 mm |
|---|---|
| Tare | 24,2 t |
| Mass of loaded wagon | 90,0 t |
| Maximum axle load | 22,5 t |
| Loading weight | 65,8 t |
| Max. speed of empty/loaded wagon | 120 km/h / 100 km/h |
|---|---|
| Loading volume | 83 m3 |
| Type of bogie | Y25 Lsi(f)-C-K |
| Transported substance | piesok, vápno / sand, lime / Sand, Kalk |
| Wagon prepared for installation of the automatic coupling | . |
