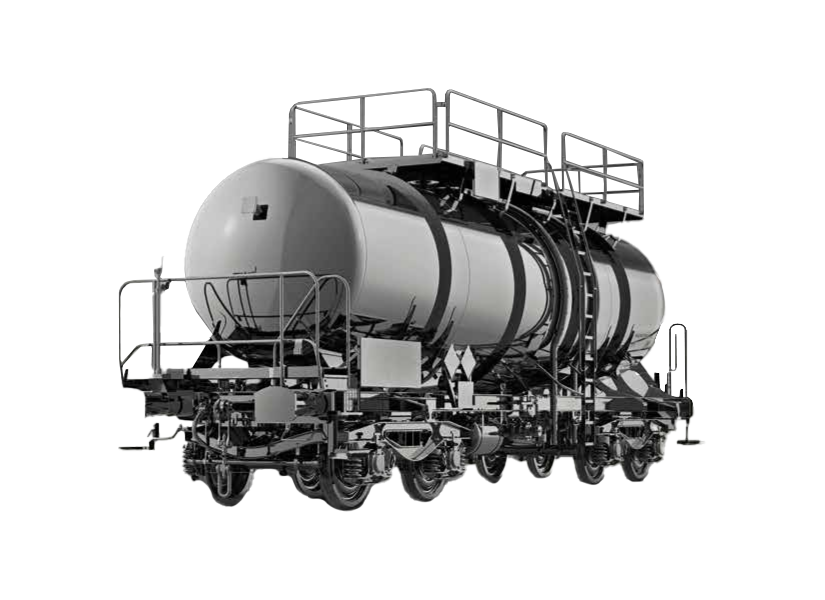

Zans 40 m³

The Zans wagon is a 4-axle tank wagon with 40 m3 volume. It complies with applicable RID regulations, applicable UIC Leaflets, ERRI recommendations, agreement about mutual use of freight wagons in the international transport AVV (RIV) and EN standards. The wagon is designed for operation without any limitations on all European tracks with normal track gauge and for climatic conditions with temperatures from -25 oC to +50 oC.

I want to know more
;

Technical specification

Track Gauge 1435 mm
Wagon tare with insulation (Version A) 21 t
Wagon tare without insulation (Version B) 20 t
Mass of loaded wagon 90 t
Maximum axle load 22,5 t
Max. loading weight with insulation (Version A) 69 t
Max. loading weight without insulation (Version B) 70 t
Max. speed of empty/loaded wagon 120 km/h / 100 km/h
Loading volume 40 m³
Compact brake KNORR KE-GP-A, 1x16“
Type of bogie Y25Lsd1 s brzdovými klátikmi P10
