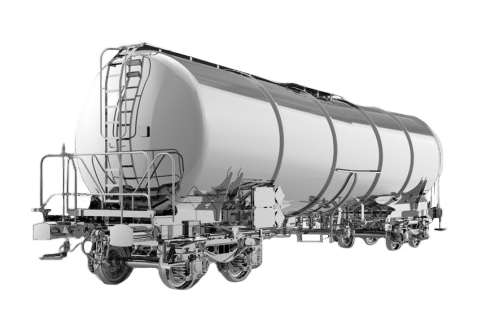

Za(c)ns 88 m³ N-328-00

The wagon of Za(c)ns series is a 4-axle tank wagon of 88 m3 volume; it complies with TSI WAG, regulations, applicable UIC Leaflets, ERRI recommendations, agreement on mutual application of freight wagons in the international transport AVV, regulations for the international railway transport of dangerous goods RID, EN standards. The wagon is designed for operation without limitations on all European railway tracks with normal track gauge and for climatic conditions with T1 temperatures (from -25 oC to +40 oC) according to TSI-WAG. The wagon meets the conditions for GE marking according toTSI-WAG.

Technical specification

Track gauge 1 435 mm
Tare 21,7 t
Weight of loaded wagon 90,0 t
Max. axle weight 22,5 t
Loading weight 68,3 t
Max. speed of empty/loaded wagon 120 km/h / 100 km/h
Loading volume 88 m³
Type of bogie Y25 Ls-K
Wagon prepared for installation of the automatic coupling .
Maximal volume at low wagon weight in the frame version. Increase of transportation capacity. .

Product variants (1)

Title Length over buffers mm Volume m³ Weight t DAC ready
Zans 88 m³ N-315-00 15 140 88 21,4 No Download product datasheet

Interested in this product?

Please contact us to +421 52 711 2123 or sales@tatravagonka.sk
