Uas

uas

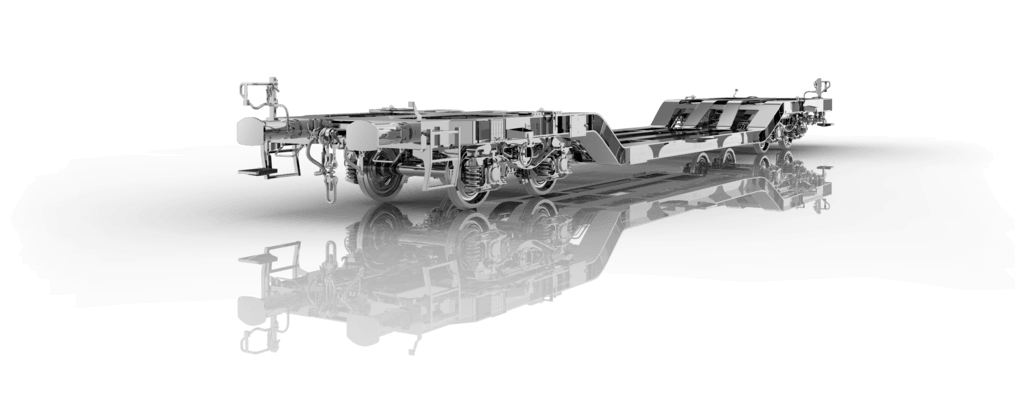

4-axle wagon Uas is primarily designed for transportation of special swap bodies, known as “user-oriented containers.” It is an interesting conceptual solution for infrastructure works, such as mobile workshops, emergency vehicles, and various types of machinery. Depending on the intended use, it is possible to opt for a suspension with lower stiffness rated for 20 tons per axle instead of the standard 22,5 ton suspension, which slightly adjusts running comfort.

Technical specification

Length over buffers 18 240 mm
Track gauge 1435 mm
Bogie Y25 Lsi(f)-C-K Y25 Csi(f)-C-K
Bogie wheel base 1800 mm
Wagon tare 21 t ±2 %
Max. weight of loaded wagon 90 t

Interested in this product?

Please contact us to +421 52 711 2123 or sales@tatravagonka.sk
