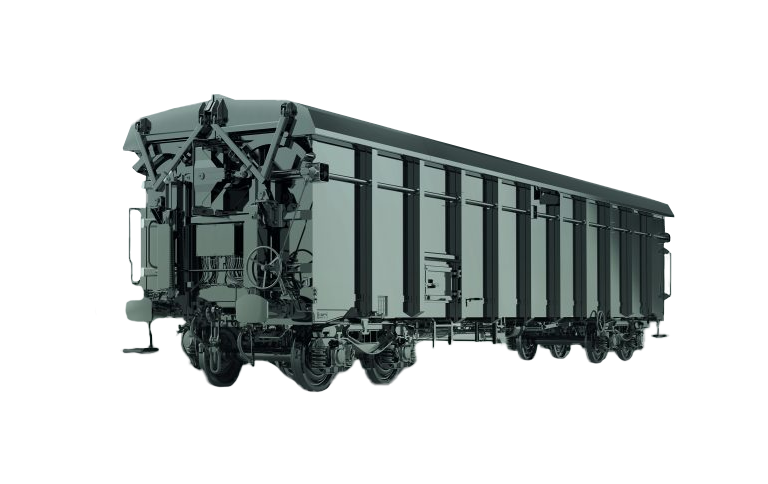

Tamns
4-axle wagon with opening roof according is designed for transportation of REA-gypsum with specific weight of 0,8 t/m3. The wagon is whole-metal with integral straight floor, solid front walls, two-part opening roof and with two openings with doors for wagon cleaning. The wagon complies with regulations of TSI WAG, TSI NOISE, applicable UIC leaflets, ERRI recommendations, agreement on mutual use of freight wagons in the international transport AVV(RIV) and EN standards. The wagon is designed for transportation without any limitations on all European tracks with normal track gauge and for climatic conditions with T1 temperatures (-25 °C +40 °C) according to TSI WAG. The wagon meets the conditions for GE marking according to TSI WAG.
I want to know more
| Length over buffers | 15 740 mm |
|---|---|
| Loading length | 14 495 mm |
| Distance between bogie pivots | 10 700 mm |
| Track Gauge | 1 435 mm |
| Bogie | Y25Ls-K, 1xBgu |
| bogie wheel base | 1 800 mm |
| Wheel diameter | 920 mm |
| Výška nakladacej roviny pre vymeniteľné nadstavby od T.K. | 1 235 mm |
| Kinematic gauge G1/GI1 according to TSI WAG and EN 15273-2 | . |
|---|---|
| Weight of loaded wagon | 90 t |
| Max. axle load | 22,5 t |
| Max. speed of empty wagon | 120 km/hod. / km/hour |
| Brake | WABTEC KE-GP-A (K) -1x12“ |
| Type of bogie | Y25Ls-K, 1xBgu |
| Learn more in the product sheet | . |
