Kgs

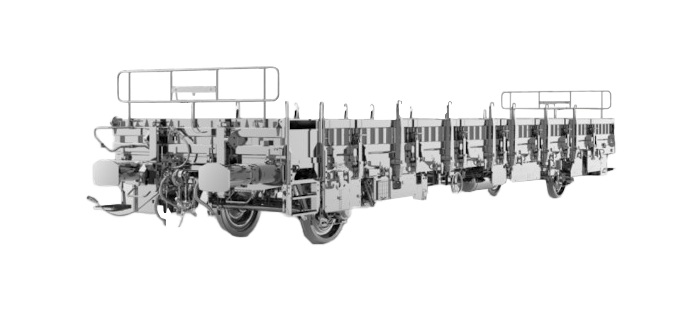

The wagon of Kgs series is a 2-axle flat wagon with hinged front and sides plates, with hinged side stanchions and with a wooden floor. The wagon is also equipped with container pins and with an electric equipment. The wagon is designed as a working wagon for transportation of loose material, small amount of bulk material, 10 ́,20 ́,30 ́ ISO containers, swap bodies, boxes, etc. The wagon complies with TSI WAG, TSI NOISE, regulations, applicable UIC Leaflets, ERRI recommendations, agreement on mutual application of freight wagons in the international transport AVV, EN and ISO standards. The wagon is designed for operation in S mode and for climatic conditions with T1 temperatures (from -25°C to +40°C) according to TSI-WAG.

I want to know more
;

Technical specification

Track Gauge 1 435 mm
Tare 16,3 t
Mass of loaded wagon 45,0 t
Maximum axle load 22,5 t
Loading weight 28,7 t
Max. speed of empty/loaded wagon 120 km/h / 100 km/h
Container loading plane height above top of rail 1225 mm
Running gear according to UIC 517, Annex D.1 ( 22,5t) .
Wagon prepared for installation of the automatic coupling .
Transportation of containers by means of the container pins enabling preservation of compact floor .
