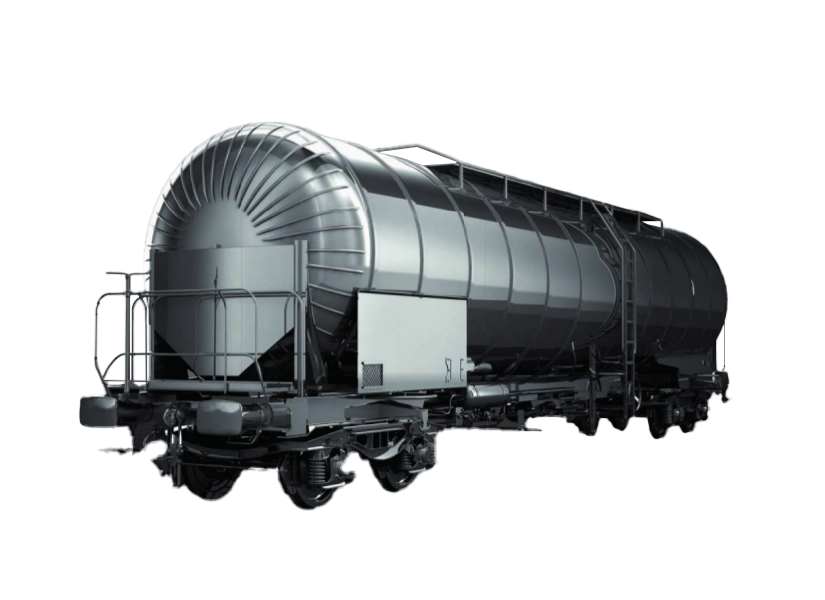

Zacens 64 m³
The wagon is designed to Transport substance of types 3, 6.1 according to RID. Strength tank calculation according to AD MERKBLLAT A RID.
Filling and draining from the top of the tank through manhole or filler neck.
| Track Gauge | 1 435/1 520 mm |
|---|---|
| Tare | 28.9 t |
| Mass of loaded wagon | 90 t |
| Loading weight | 61.1 t |
| Maximum axle load | 22.5 t |
| Max. speed of empty/loaded wagon | 120/100 km/h |
| Tank volume | 64 m³ |
| Material of tank – Anti-corrosive steel | 1.4571 |
| Calculation temperature | –60/+150 °C |
|---|---|
| Insulation | 180 mm |
| Manhole | DN 500 DIN 26020 |
| Test overpressure | 4 bar |
| Design overpressure | 4 bar |
| External overpressure | 0.8 bar |
| Type of bogie | Y25Lsd1/CN II-X3-0 |
