Zacns 62 m³

The wagon is designed for operation without limitations on all European railway tracks, for climatic conditions with temperatures from –20 °C to +50 °C; it is designed for
transportation of hydrochloric acid (HCL). The tank is rubbered from the inside.
Filling device is located in the upper part of the tank.
Discharging can be performed from the top through rising pipe DN 80, or from the bottom through bottom valve and T-piece DN 80.

I want to know more

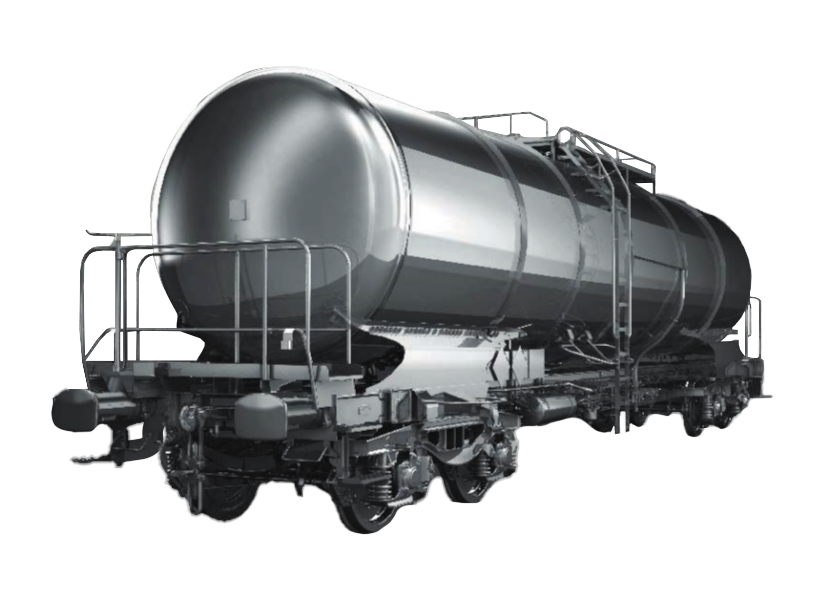

Zacns-62-m3
;

Technical specification

Track Gauge 1 435 mm
Tare 22,3 t ± 400 kg
Mass of loaded wagon 90 t
Loading weight 67,7 t
Maximum axle load 22,5 t
Max. speed of empty wagon 120 km/h
Max. speed of loaded wagon 100 km/h
Length over buffers 15 110 mm
Distance between bogie pivots 10 070 mm
Tank length 13 250 mm
Tank diameter 2 500 mm
Tank volume 62 m³
Type of bogie Y25Ls1-K
Brake KNORR KE-GP (K)
Test overpressure 4 bar
Working overpressure 3 bar
External overpressure 0,5 bar
Manhole DN 500 DIN 26021
