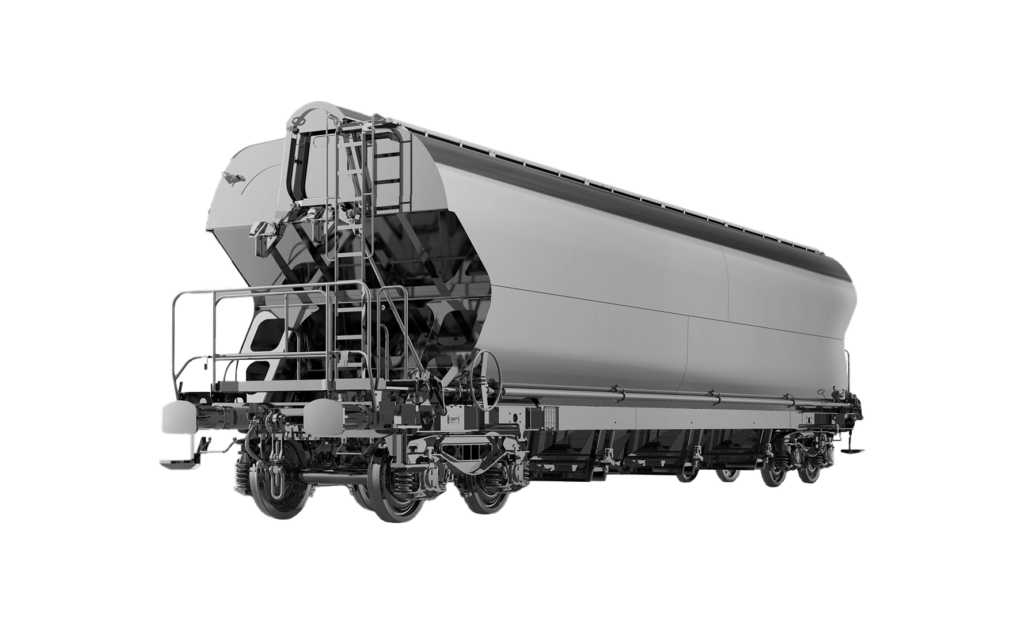

Tagnpps 103 m³

The wagon is 4-axle covered wagon designed for transportation of agricultural products, mainly grain and similar bulky products sensitive to moisture. It is equepped with opening roof and with the body with 3 discharging reservoirs and with 6 discharging openings with discharging by means of vaulted segmented flaps into the rail centre.

I want to know more
;

Technical specification

Track Gauge 1 435 mm
Tare 21,2 t
Mass of loaded wagon 90,0 t
Maximum axle load 22,5 t
Max. speed of empty wagon 120 km/h / 100 km/h
Loading volume 103 m³
Number of discharging openings 6
Loading opening 13 620 x 600 mm
Compact brake CFCB
Type of bogie Y25 Lsi-C-K, Y25 Lsif-C-K
